Demystifying the Avid Import Settings Dialog Box: Part 1

Import images into Avid Media Composer the right way!  Avoid stretched and squeezed images, and master these simple rules to make importing as accurate and effective as possible.

(Part 1)

Importing images — both still graphics and movies — into editing software isn’t always as cut and dry as it might seem.  Indeed, you have many choices regarding size, aspect ratio, pixel shape, color, and alpha channel treatment — and if you make just one wrong choice, your graphic may come in unrecognizable.  For that reason, it’s a good idea to master the rules in Avid Media Composer’s Import Settings dialog box.

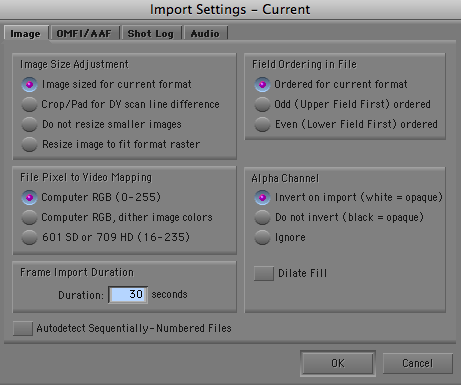

This is the first post in a two-part series concerning the various settings in the Import Settings dialog box in Avid Media Composer.  This post will explain the following categories:

  • Image Size Adjustment

Let’s go point by point within the Image Size Adjustment section and talk about what everything means.  (For an explanation of the settings in the bottom part of the window, see Part 2 of this series.)

Image Size Adjustment

Image Size Adjustment concerns frame size (raster dimension) as well as pixel shape (pixel aspect ratio).  It is the most difficult to understand, so I will try to explain it as simply as possible.

Option #1: Image sized for current format:  This option assumes that the image that you are importing has been perfectly sized for the current project format.  This simply means that the image meets two criteria — it is the correct size, or raster dimension; and the pixels are the correct shape, or aspect ratio.

Ok, so what does this mean?  Well, if you look at the Raster Dimension label under the Format tab of your Project window, you will see your project’s resolution.  Simply put, your graphic needs to be this same size — kind of.  Keep reading for a fuller explanation.

HD Projects: So, if your HD project resolution is 1920×1080, then the graphic or movie files you input should also be 1920×1080.  This works great, because HD projects in Avid Media Composer exhibit square pixels, and pretty much every graphics creation program out there (i.e., Photoshop) also exhibits square pixels by default.  There is no conversion necessary, and everything is pretty simple.

SD Projects:  However — and this is where this can get confusing — SD projects (720×486) in Avid Media Composer have non-square pixels.  So if you’re working in a 720×486 SD project, you can’t just import a 720×486 image that you created in Photoshop, since the pixels are square by default.  Instead, you have to import an image sized at 648×486.  Why?  Well, when a 648×486 image is imported into Avid Media Composer, it stretches the pixels to fit in the 720×486 format raster appropriately.  Strange, I know, but it works!

Note: the other option, of course, to change the pixel aspect ratio in your graphics creation program (i.e., Photoshop) to non-square pixels before importing the image into Avid Media Composer.

If, however, the image was not sized correctly as explained above, Avid Media Composer will stretch or squeeze the image to fit into the project’s format raster.  This is usually how some images end up unintentionally forced into a format raster that they were not intended to fit.

The below image is 400×150 pixels:

And this is what results when you incorrectly choose Option #1 when bringing a 400×150 pixel image into a 720×486 video frame:

Option #2: Crop/Pad for DV Scan Line Difference:  (NTSC Projects only)  Standard NTSC footage is sized at 720×486.  However, the DV flavor of NTSC is sized at 720×480.  That’s a 6-line difference — 4 lines from the top, and 2 lines from the bottom.  Therefore, if you choose this option, the following will happen:

  • If you import a NTSC DV (720×480) image into a standard NTSC (720×486) project, Avid Media Composer will pad 6 lines onto the image — 4 lines at the top, and 6 lines at the bottom — to make it fit in the project without stretching it.
  • If you import a standard NTSC image into a NTSC DV project, Avid Media Composer will crop the image — 4 lines from the top and 2 lines from the bottom — to make it fit in the project without squeezing it.

As you can imagine, choosing this option produces very subtle results, but it’s good that it exists to prevent even the most minute unnecessary stretching and squeezing.

Option #3: Do not resize smaller images:  This option assumes that your image is sized smaller than the video frame.  Therefore, if you import a smaller image, choosing Option #3 will tell Avid Media Composer to not resize it, resulting in no stretching or squeezing.  Instead, it centers the image and floods the area around the image in video black (if there is no alpha channel), or in transparency (if there is an alpha channel).

This is often how SD graphics are brought into an HD project, so the image isn’t enlarged into the HD frame (which would result in extensive pixelation).

When the above 400×150 graphc is imported into a 720×486 project using Option #3, this is the result:

The image is centered, not resized, and the area around the image is flooded in video black.

Option #4: Resize image to fit format raster: This option assumes that your image is sized “incorrectly” — i.e., at a size different than the video frame.  Choosing Option #4 tells Avid Media Composer to resize the image to the maximum width (for wide images) or maximum height (for tall images), and to letterbox the rest of the image in video black.  This option works for images that are either smaller than, or larger than the video frame.

When the ab0ve image (400×150 pixels) is imported into a 720×486 project using this option, this is the result:

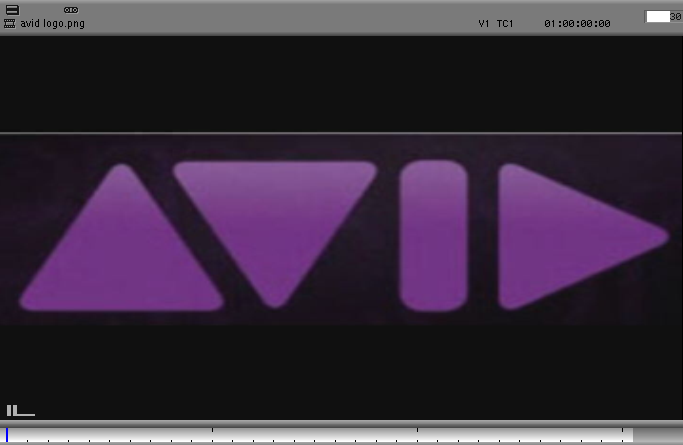

This image is resized to the maximum width because it is wider than it is tall. The area to the top and bottom of the image is letterboxed in video black.

Need Music for your Video Projects?

Browse our Exclusive Music Library

Related Posts:

  • Pingback: Video Tutorial: A Discussion about Import Rules and Pixel Aspect Ratio in Avid Media Composer | Premiumbeat.com

  • culturejunkie

    Very helpful, thanks. That’s one confusing menu of choices. My question is, if I’m importing a variety of different sized images (various historical photos), and want to use them in a Ken Burns style pan and scan, what is the best way to import them? Option 3? Only I fear that when I zoom in to do the scan, I’ll loose quality. Any thoughts?

    • Martin Hommel

      Best method would be to import using option3or 4. But only as a placeholder. Put images on timeline and apply the “pan and zoom” effect. From this effect link to the images. This way you can zoom in using the images full resolution

      • Ted Levy

        Or buy a third-party plugin for Avid to access the full resolution of still images. My favorite for years has been Moving Picture by Stagetools.
